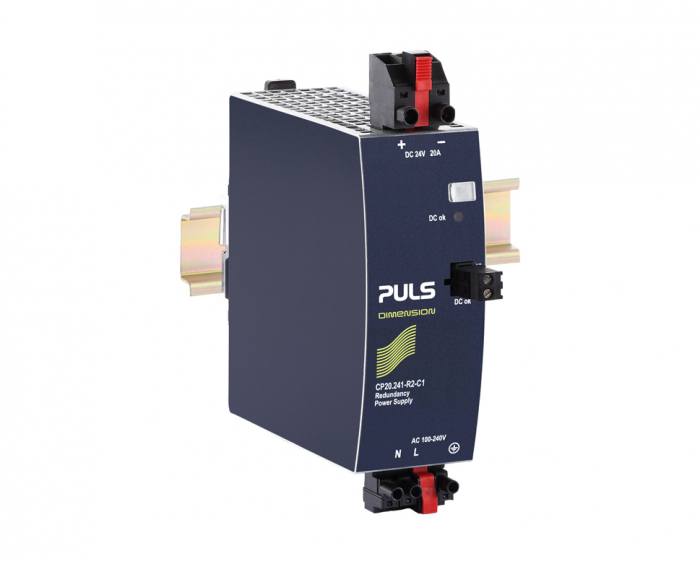

Puls CP20.241-R2-C1, Power supply with integrated decoupling function, 24V, 20A, hot swappable Conformal coated

+ TVA 1.636,00 RON + TVA

General specifications

  • AC 100-240V Wide-range Input
  • Width only 48mm
  • Built-in Decoupling Mosfet for 1+1 and n+1 Redundancy
  • Efficiency up to 95.2%
  • 20% Output Power Reserves
  • Safe HiccupPLUS Overload Mode
  • Easy Fuse Breaking– 3 times nominal current for 12ms
  • Active Power Factor Correction (PFC)
  • Minimal Inrush Current Surge
  • Full Power Between -40°C and +60°C
  • DC-OK Relay Contact
  • Current Sharing Feature Included
  • 3 Year Warranty

DC Output

  • 24 Vdc
  • 20 A
  • 480W


  • AC 100-240V (-15%/+10%)
  • DC 110V-150V  (± 20%)
  • Size(WxHxD) 48 x 124 x 127mm
  • Weight 850g
Fisa tehnica
La comanda

Durata de livrare: 2 saptamani

Limita stoc
Adauga in cos
Cod Produs: CP20.241-R2-C1 Ai nevoie de ajutor? 0754 070 075
Adauga la Favorite Cere informatii
  • Descriere
  • Video (1)
  • Review-uri (0)

The Dimension CP-Series are cost optimized power supplies without compromising quality, reliability and performance. The most outstanding features of the CP20.241–R1/-R2 units are the high efficiency, electronic inrush current limitation, active PFC, wide operational temperature range and the extraordinary small size. The units include a decoupling MOSFET for building 1+1 or n+1 redundant power supply systems.

These redundancy power supplies come with three connection terminal options; screw terminals, springclamp terminals or plug connector terminals which allows replacement on an active application.

CP20.242-R2 version feature an enhanced DC input voltage range and the CP20.241-R2-C1 is additionally equipped with conformal coated pc-boards.

With high immunity to transients and power surges, low electromagnetic emission, a DC-OK signal contact for remote monitoring, and a large international approval package, makes this unit suitable for nearly every application.
