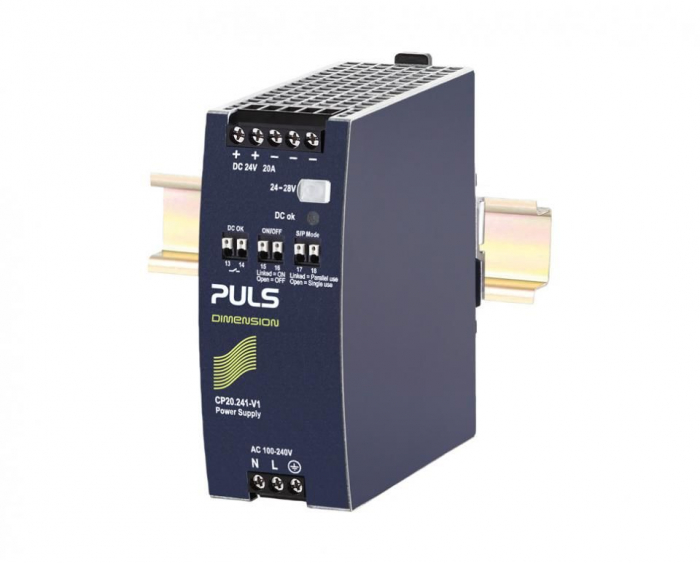

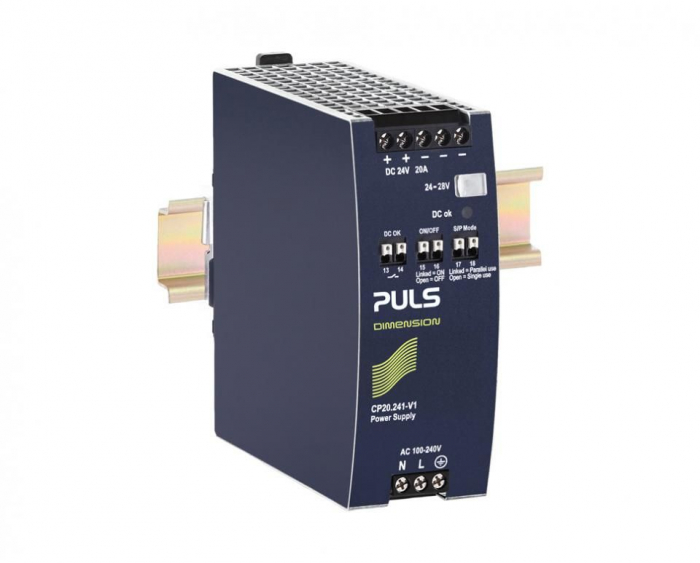

CP20.241-V1, DIN-rail power supplies for 1-phase systems 24V, 20A, Remote shut-down
![CP20.241-V1, DIN-rail power supplies for 1-phase systems 24V, 20A, Remote shut-down [1]](https://gomagcdn.ro/domains/electrofive.ro/files/product/original/cp20-241-v1-din-rail-power-supplies-for-1-phase-systems-24v-20a-push-in-terminals-1208-8250.jpg "CP20.241-V1, DIN-rail power supplies for 1-phase systems 24V, 20A, Remote shut-down [1]")
![CP20.241-V1, DIN-rail power supplies for 1-phase systems 24V, 20A, Remote shut-down [2]](https://gomagcdn.ro/domains/electrofive.ro/files/product/original/cp20-241-v1-din-rail-power-supplies-for-1-phase-systems-24v-20a-push-in-terminals-1208-6415.jpg "CP20.241-V1, DIN-rail power supplies for 1-phase systems 24V, 20A, Remote shut-down [2]")
![CP20.241-V1, DIN-rail power supplies for 1-phase systems 24V, 20A, Remote shut-down [3]](https://gomagcdn.ro/domains/electrofive.ro/files/product/original/cp20-241-v1-din-rail-power-supplies-for-1-phase-systems-24v-20a-push-in-terminals-1208-9680.jpg "CP20.241-V1, DIN-rail power supplies for 1-phase systems 24V, 20A, Remote shut-down [3]")
![CP20.241-V1, DIN-rail power supplies for 1-phase systems 24V, 20A, Remote shut-down [0]](https://gomagcdn.ro/domains/electrofive.ro/files/product/medium/cp20-241-v1-din-rail-power-supplies-for-1-phase-systems-24v-20a-push-in-terminals-1208-8250.jpg "CP20.241-V1, DIN-rail power supplies for 1-phase systems 24V, 20A, Remote shut-down [0]")
![CP20.241-V1, DIN-rail power supplies for 1-phase systems 24V, 20A, Remote shut-down [1]](https://gomagcdn.ro/domains/electrofive.ro/files/product/medium/cp20-241-v1-din-rail-power-supplies-for-1-phase-systems-24v-20a-push-in-terminals-1208-6415.jpg "CP20.241-V1, DIN-rail power supplies for 1-phase systems 24V, 20A, Remote shut-down [1]")
![CP20.241-V1, DIN-rail power supplies for 1-phase systems 24V, 20A, Remote shut-down [2]](https://gomagcdn.ro/domains/electrofive.ro/files/product/medium/cp20-241-v1-din-rail-power-supplies-for-1-phase-systems-24v-20a-push-in-terminals-1208-9680.jpg "CP20.241-V1, DIN-rail power supplies for 1-phase systems 24V, 20A, Remote shut-down [2]")
General specifications
- AC 100-240V Wide-range Input
- Width only 48mm
- Built-in Decoupling Mosfet for 1+1 and n+1 Redundancy
- Efficiency up to 95.2%
- 20% Output Power Reserves
- Safe HiccupPLUS Overload Mode
- Easy Fuse Breaking– 3 times nominal current for 12ms
- Active Power Factor Correction (PFC)
- Minimal Inrush Current Surge
- Full Power Between -40°C and +60°C
- DC-OK Relay Contact
- Current Sharing Feature Included
- 3 Year Warranty
DC Output
- 24-28 Vdc
- 20-17.1 A
- 480W
Input
- AC 100-240V (-15%/+10%)
- DC 110V-150V (± 20%)
- Size(WxHxD) 48 x 124 x 127mm
- Weight 830g
Durata de livrare: 2 saptamani
- Descriere
- Video (1)
- Review-uri (0)
The Dimension CP-Series are cost optimized power supplies without compromising quality, reliability and performance. The most outstanding features of the CP20.241–R1/-R2 units are the high efficiency, electronic inrush current limitation, active PFC, wide operational temperature range and the extraordinary small size. The units include a decoupling MOSFET for building 1+1 or n+1 redundant power supply systems.
These redundancy power supplies come with three connection terminal options; screw terminals, springclamp terminals or plug connector terminals which allows replacement on an active application.
CP20.242-R2 version feature an enhanced DC input voltage range and the CP20.241-R2-C1 is additionally equipped with conformal coated pc-boards.
With high immunity to transients and power surges, low electromagnetic emission, a DC-OK signal contact for remote monitoring, and a large international approval package, makes this unit suitable for nearly every application.
