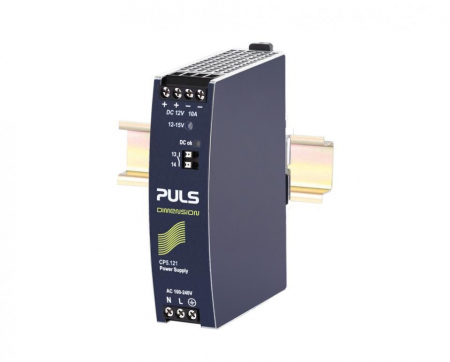

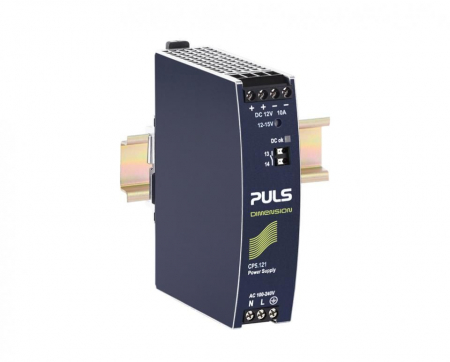

CP5.121, DIN-rail power supplies for 1-phase systems, 12V, 10A, 120W
![CP5.121, DIN-rail power supplies for 1-phase systems, 12V, 10A, 120W [1]](https://gomagcdn.ro/domains/electrofive.ro/files/product/original/cp5-121-1236-6752.jpg "CP5.121, DIN-rail power supplies for 1-phase systems, 12V, 10A, 120W [1]")
![CP5.121, DIN-rail power supplies for 1-phase systems, 12V, 10A, 120W [2]](https://gomagcdn.ro/domains/electrofive.ro/files/product/original/cp5-121-left-1236-7647.jpg "CP5.121, DIN-rail power supplies for 1-phase systems, 12V, 10A, 120W [2]")
![CP5.121, DIN-rail power supplies for 1-phase systems, 12V, 10A, 120W [3]](https://gomagcdn.ro/domains/electrofive.ro/files/product/original/cp5-121-raight-1236-5999.jpg "CP5.121, DIN-rail power supplies for 1-phase systems, 12V, 10A, 120W [3]")
![CP5.121, DIN-rail power supplies for 1-phase systems, 12V, 10A, 120W [0]](https://gomagcdn.ro/domains/electrofive.ro/files/product/medium/cp5-121-1236-6752.jpg "CP5.121, DIN-rail power supplies for 1-phase systems, 12V, 10A, 120W [0]")
![CP5.121, DIN-rail power supplies for 1-phase systems, 12V, 10A, 120W [1]](https://gomagcdn.ro/domains/electrofive.ro/files/product/medium/cp5-121-left-1236-7647.jpg "CP5.121, DIN-rail power supplies for 1-phase systems, 12V, 10A, 120W [1]")
![CP5.121, DIN-rail power supplies for 1-phase systems, 12V, 10A, 120W [2]](https://gomagcdn.ro/domains/electrofive.ro/files/product/medium/cp5-121-raight-1236-5999.jpg "CP5.121, DIN-rail power supplies for 1-phase systems, 12V, 10A, 120W [2]")
General specifications
- AC 100-240V Wide-range input
- Width only 48mm
- Display for condition monitoring and easy analysis of power errors
- Efficiency up to 95.6%
- 20% output power reserves
- Easy Fuse Breaking – 3 times nominal current for 12ms
- Safe HiccupPLUS Overload Mode
- Full power between -25°C and +60°C
- DC OK relay contact
- ALARM relay contact
- Remote ON/OFF functionality
- Current sharing feature for parallel use
- 3 Year Warranty
Durata de livrare: 2 saptamani
- Descriere
- Review-uri (0)
The Dimension CP-Series are cost optimized power supplies without compromising quality, reliability and performance. The CP-Series is part of the DIMENSION power supply family.
The most outstanding features of this unit is the small size, the high efficiency, the electronic inrush current limitation, active PFC and the wide operational temperature range. The device has a power reserve of 20% included, which may even be used continuously at temperatures up to +45°C. Additionally, it can deliver 3 times the nominal output current for 12ms which helps to trip fuses on faulty output branches.
High immunity to transients and power surges as well as low electromagnetic emission, a DC-OK signal contact for remote monitoring, and a large international approval package for a variety of applications makes this unit suitable for nearly every situation.
Fisa tehnica
