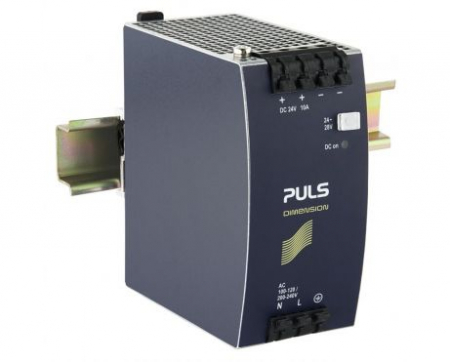

Puls CS10.241-S1, DIN-rail power supplies for 1-phase systems, 24V, 10A, 240W, spring clamp terminals

+ TVA 735,00 RON + TVA

General specifications

  • AC 100-240V Wide-range Input
  • Width only 65mm
  • Efficiency up to 92.6%
  • ATEX and IECEx Approved
  • Excellent Partial Load Efficiency
  • Safe HiccupPLUS Overload Mode
  • Easy Fuse Breaking due to High Overload Current(typ. 120A for 15ms)
  • Active Power Factor Correction (PFC)
  • Minimal Inrush Current Surge
  • Full Power Between -25°C and +60°C
  • DC-OK Relay Contact
  • Current Sharing Feature for Parallel Use
  • 3 Year Warranty
Fisa tehnica
La comanda

Durata de livrare: 2 saptamani

Limita stoc
Adauga in cos
Cod Produs: CS10.241-S1 Ai nevoie de ajutor? 0754 070 075
Adauga la Favorite Cere informatii
  • Descriere
  • Review-uri (0)

The DIMENSION C-Line units are cost optimized power supplies without compromising quality, reliability and performance. The C-Line is part of the DIMENSION power supply family, existing alongside the high featured Q-Line.

The CS10.241 includes all the essential basic functions and the devices have a power reserve of 20%. This extra current may even be used continuously at temperatures up to +45°C.

The most important features are the small size, high efficiency and the wide temperature range.

The Auto-select input makes worldwide installation and usage very simple. Defects or system failures caused by wrongly set switches cannot occur.

High immunity to transients and power surges as well as low electromagnetic emission and a large international approval package for a variety of applications makes this unit suitable for nearly every situation.
