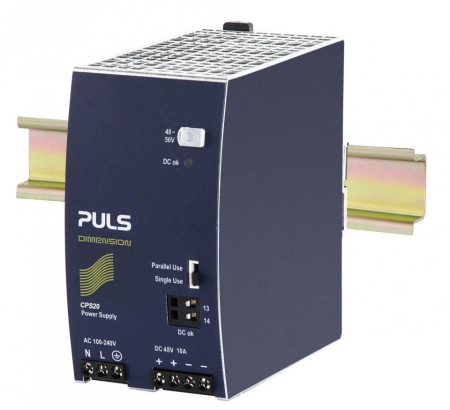

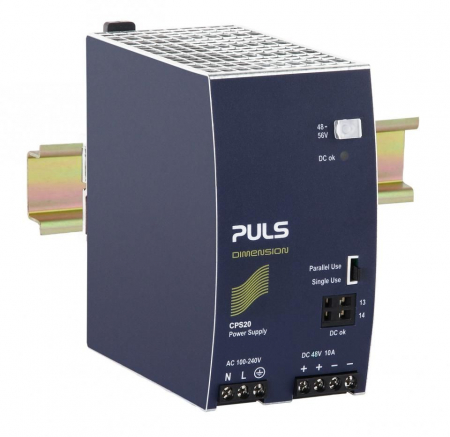

Puls CPS20.481, DIN-rail power supplies for 1-phase systems, 48V, 10A, 480W

+ TVA 836,13 RON + TVA

General specifications

  • AC 100-240V Wide-range Input
  • Width only 65mm
  • Efficiency up to 92.6%
  • ATEX and IECEx Approved
  • Excellent Partial Load Efficiency
  • Safe HiccupPLUS Overload Mode
  • Easy Fuse Breaking due to High Overload Current(typ. 120A for 15ms)
  • Active Power Factor Correction (PFC)
  • Minimal Inrush Current Surge
  • Full Power Between -25°C and +60°C
  • DC-OK Relay Contact
  • Current Sharing Feature for Parallel Use
  • 3 Year Warranty
Fisa tehnica
La comanda

Durata de livrare: 2 saptamani

Limita stoc
Adauga in cos
Cod Produs: CPS20.481 Ai nevoie de ajutor? 0754 070 075
Adauga la Favorite Cere informatii
  • Descriere
  • Review-uri (0)

The Dimension C-Series are cost optimized power supplies without compromising quality, reliability and performance. The C-Series is part of the DIMENSION power supply family. The most outstanding features of CPS20.121 are the high efficiency, electronic inrush current limitation, active PFC, wide operational temperature range. The small size is achieved by a synchronous rectification and further technological design details.

The C-Series includes all the essential basic functions. Additionally, the CPS20.121 can deliver about 4 times the nominal output current for 15ms which helps to trip fuses on faulty output branches

The C-Series includes all the essential basic functions. Additionally, the CPS20.121 can deliver about 4 times the nominal output current for 15ms which helps to trip fuses on faulty output branches
