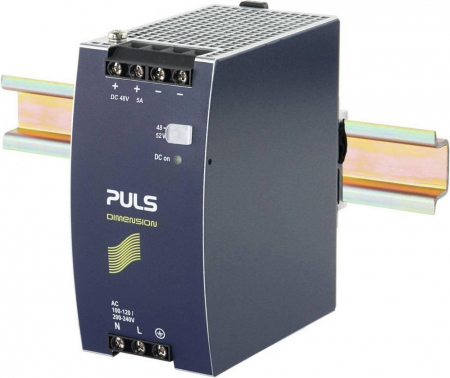

CS10.481, DIN rail power supplies for 1-phase system 48V, 5A
![CS10.481, DIN rail power supplies for 1-phase system 48V, 5A [1]](https://gomagcdn.ro/domains/electrofive.ro/files/product/original/surs-de-alimentare-puls-dimension-cs10481-in-din-48-vdc-5-a-240-w-1-1295-7368.jpg "CS10.481, DIN rail power supplies for 1-phase system 48V, 5A [1]")
![CS10.481, DIN rail power supplies for 1-phase system 48V, 5A [2]](https://gomagcdn.ro/domains/electrofive.ro/files/product/original/surs-de-alimentare-puls-dimension-cs10481-in-din-48-vdc-5-a-240-w-1295-4560.jpg "CS10.481, DIN rail power supplies for 1-phase system 48V, 5A [2]")
![CS10.481, DIN rail power supplies for 1-phase system 48V, 5A [3]](https://gomagcdn.ro/domains/electrofive.ro/files/product/original/surs-de-alimentare-puls-dimension-cs10481-in-din-48-vdc-5-a-240-w-2-1295-9772.jpg "CS10.481, DIN rail power supplies for 1-phase system 48V, 5A [3]")
![CS10.481, DIN rail power supplies for 1-phase system 48V, 5A [4]](https://gomagcdn.ro/domains/electrofive.ro/files/product/original/surs-de-alimentare-puls-dimension-cs10481-in-din-48-vdc-5-a-240-w-3-1295-7645.jpg "CS10.481, DIN rail power supplies for 1-phase system 48V, 5A [4]")
![CS10.481, DIN rail power supplies for 1-phase system 48V, 5A [0]](https://gomagcdn.ro/domains/electrofive.ro/files/product/medium/surs-de-alimentare-puls-dimension-cs10481-in-din-48-vdc-5-a-240-w-1-1295-7368.jpg "CS10.481, DIN rail power supplies for 1-phase system 48V, 5A [0]")
![CS10.481, DIN rail power supplies for 1-phase system 48V, 5A [1]](https://gomagcdn.ro/domains/electrofive.ro/files/product/medium/surs-de-alimentare-puls-dimension-cs10481-in-din-48-vdc-5-a-240-w-1295-4560.jpg "CS10.481, DIN rail power supplies for 1-phase system 48V, 5A [1]")
![CS10.481, DIN rail power supplies for 1-phase system 48V, 5A [2]](https://gomagcdn.ro/domains/electrofive.ro/files/product/medium/surs-de-alimentare-puls-dimension-cs10481-in-din-48-vdc-5-a-240-w-2-1295-9772.jpg "CS10.481, DIN rail power supplies for 1-phase system 48V, 5A [2]")
![CS10.481, DIN rail power supplies for 1-phase system 48V, 5A [3]](https://gomagcdn.ro/domains/electrofive.ro/files/product/medium/surs-de-alimentare-puls-dimension-cs10481-in-din-48-vdc-5-a-240-w-3-1295-7645.jpg "CS10.481, DIN rail power supplies for 1-phase system 48V, 5A [3]")
Genereal specifications:
- DC output:
- 48 - 52Vdc
- 5 - 4.6A
- 240W
- Input AC: 200 - 240V (± 10%)
- Dimensions (WxHxD) 60 x 124 x 117mm
- Weight 700g
Durata de livrare: 2 saptamani
- Descriere
- Video (1)
- Review-uri (0)

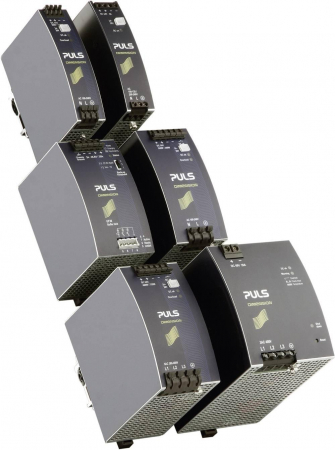

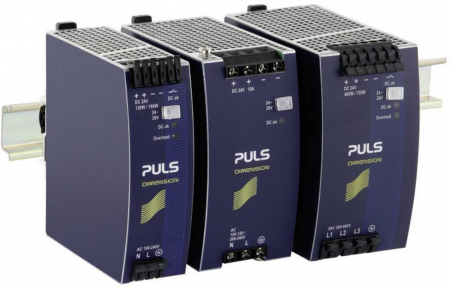

The DIMENSION C-Line units are cost optimized power supplies without compromising quality, reliability and performance. The C-Line is part of the DIMENSION power supply family, existing alongside the high featured Q-Line.
The CS10.481 includes all the essential basic functions and the devices have a power reserve of 20%. This extra current may even be used continuously at temperatures up to +45°C.
The most important features are the small size, high efficiency and the wide temperature range.
The unit has an input for 200-240V mains only. This supports regional applications and offers additional cost savings without sacrificing functionality..
High immunity to transients and power surges as well as low electromagnetic emission and a large international approval package for a variety of applications makes this unit suitable for nearly every situation.
Fisa tehnica
