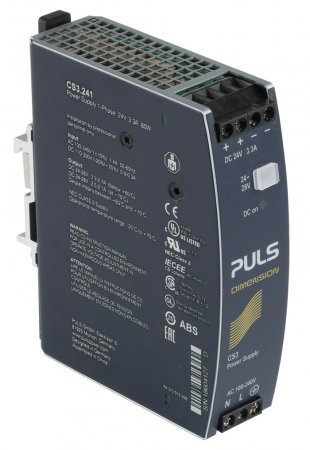

CS3.241, DIN rail power supplies for 1-phase system 24V, 3.3A
![CS3.241, DIN rail power supplies for 1-phase system 24V, 3.3A [1]](https://gomagcdn.ro/domains/electrofive.ro/files/product/original/cs3-241-din-rail-power-supplies-for-1-phase-system-24v-3-3a-1296-8291.jpg "CS3.241, DIN rail power supplies for 1-phase system 24V, 3.3A [1]")
![CS3.241, DIN rail power supplies for 1-phase system 24V, 3.3A [2]](https://gomagcdn.ro/domains/electrofive.ro/files/product/original/cs3-241-1296-4411.jpg "CS3.241, DIN rail power supplies for 1-phase system 24V, 3.3A [2]")
![CS3.241, DIN rail power supplies for 1-phase system 24V, 3.3A [0]](https://gomagcdn.ro/domains/electrofive.ro/files/product/medium/cs3-241-din-rail-power-supplies-for-1-phase-system-24v-3-3a-1296-8291.jpg "CS3.241, DIN rail power supplies for 1-phase system 24V, 3.3A [0]")
![CS3.241, DIN rail power supplies for 1-phase system 24V, 3.3A [1]](https://gomagcdn.ro/domains/electrofive.ro/files/product/medium/cs3-241-1296-4411.jpg "CS3.241, DIN rail power supplies for 1-phase system 24V, 3.3A [1]")
Genereal specifications:
- DC output:
- 24 - 28Vdc
- 3.3 - 2.7A
- 80W
- Input AC: 100 - 240V (± 10%)
- Input DC: 110 - 300V (-20%/+25%)
- Dimensions (WxHxD) 32 x 124 x 102mm
- Weight 430g
Durata de livrare: 2 saptamani
- Descriere
- Video (1)
- Review-uri (0)
The DIMENSION C-Line units are cost optimized power supplies without compromising quality, reliability and performance. The C-Line is part of the DIMENSION power supply family, existing alongside the high featured Q-Line.
The CS3.241 includes all the essential basic functions but also includes important features of small size, high efficiency, wide temperature range and is NEC Class 2 compliant.
The wide range input makes worldwide installation and usage very simple. Defects or system failures caused by wrongly set switches cannot occur.
High immunity to transients and power surges as well as low electromagnetic emission and a large international approval package for a variety of applications makes this unit suitable for nearly every situation.
Fisa tehnica
