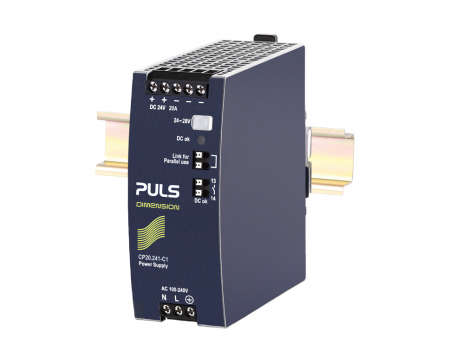

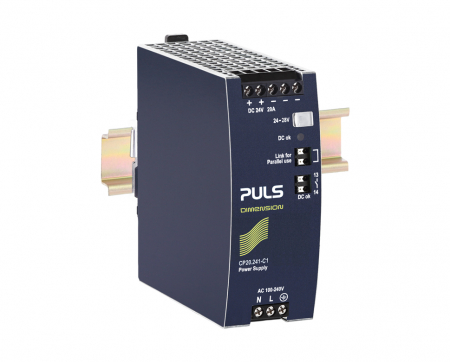

Puls CP20.241-C1, DIN-rail power supplies for 1-phase systems, 24V, 20A

+ TVA 1.147,00 RON + TVA

General specifications

  • AC 100-240V Wide-range input
  • Width only 48mm
  • Efficiency up to 95.6%
  • Excellent partial load efficiency
  • 20% Output power reserves
  • Easy fuse breaking - 3 times nominal current for 12ms
  • Safe Hiccup PLUS overload mode
  • Active power factor correction (PFC)
  • Minimal inrush current surge
  • Full power between -25°C and +60°C
  • DC-OK relay contact
  • Current sharing feature for parallel use conformal coated

DC Output

  • 24-28Vdc
  • 20-17.1A
  • 480W

Input

  • AC 100-240V (-15%/+10%)
  • DC 110V-150V  (± 20%)
  • Size(WxHxD) 48 x 124 x 127mm
  • Weight 830g
Fisa tehnica
La comanda

Durata de livrare: 2 saptamani

Limita stoc
Adauga in cos
Cod Produs: CP20.241-C1 Ai nevoie de ajutor? 0754 070 075
Adauga la Favorite Cere informatii
  • Descriere
  • Video (1)
  • Review-uri (0)

The Dimension CP-Series are cost optimized power supplies without compromising quality, reliability and performance. The most outstanding features of the CP20 series are the high efficiency, electronic inrush current limitation, active PFC, wide operational temperature range and the extraordinary small size.

The CP20.241-C1 is equipped with conformal coated pcboards preferred for applications in harsh areas.

The CP20.241-S1 is equipped with quick-connect springclamp terminals preferred for applications which are exposed to mechanical vibration. The CP20.241-S2 has push-in terminals optimized for easy cabinet wiring.

The CP20.241-V1 is equipped with a remote ON/OFF feature and the CP20.242 features an enhanced DC input voltage range.

The devices have a power reserve of 20% included, which may even be used continuously up to +45°C. High immunity to transients and power surges as well as low electromagnetic emission, a DC-OK relay contact and a large international approval package makes this unit suitable for nearly every situation.
