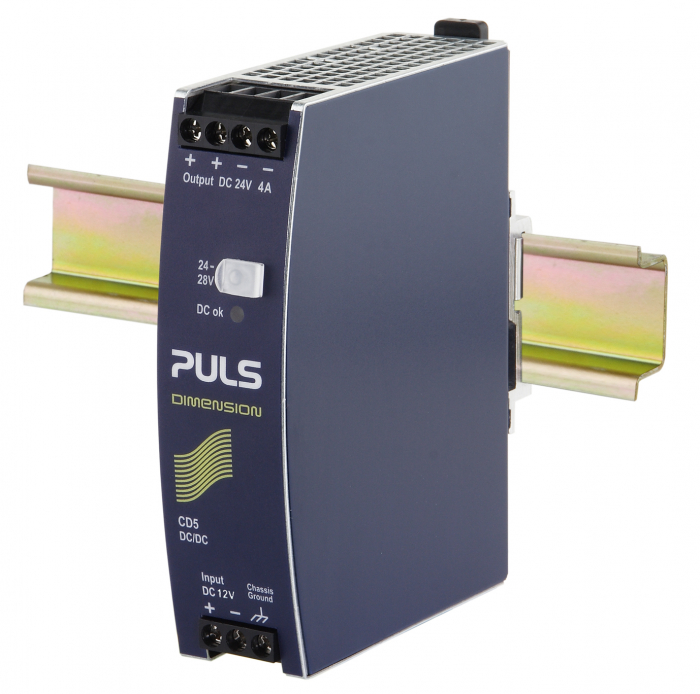

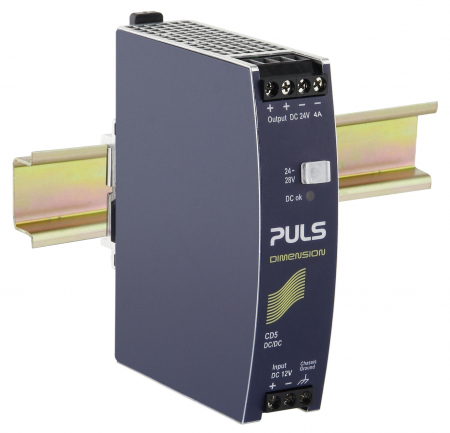

CD5.243, standard DC/DC Converter, Input: DC 12V, Output: DC 24-28V, 4A, 96W
![CD5.243, standard DC/DC Converter, Input: DC 12V, Output: DC 24-28V, 4A, 96W [1]](https://gomagcdn.ro/domains/electrofive.ro/files/product/original/cp10-242-r2-standard-redundancy-power-supply-input-ac-100-240v-dc-110-300v-output-dc-24v-10a-240w-plug-connector-copie-1184-8793.jpg "CD5.243, standard DC/DC Converter, Input: DC 12V, Output: DC 24-28V, 4A, 96W [1]")
![CD5.243, standard DC/DC Converter, Input: DC 12V, Output: DC 24-28V, 4A, 96W [2]](https://gomagcdn.ro/domains/electrofive.ro/files/product/original/cp10-242-r2-standard-redundancy-power-supply-input-ac-100-240v-dc-110-300v-output-dc-24v-10a-240w-plug-connector-copie-1184-9143.jpg "CD5.243, standard DC/DC Converter, Input: DC 12V, Output: DC 24-28V, 4A, 96W [2]")
![CD5.243, standard DC/DC Converter, Input: DC 12V, Output: DC 24-28V, 4A, 96W [3]](https://gomagcdn.ro/domains/electrofive.ro/files/product/original/cp10-242-r2-standard-redundancy-power-supply-input-ac-100-240v-dc-110-300v-output-dc-24v-10a-240w-plug-connector-copie-1184-3568.jpg "CD5.243, standard DC/DC Converter, Input: DC 12V, Output: DC 24-28V, 4A, 96W [3]")
![CD5.243, standard DC/DC Converter, Input: DC 12V, Output: DC 24-28V, 4A, 96W [0]](https://gomagcdn.ro/domains/electrofive.ro/files/product/medium/cp10-242-r2-standard-redundancy-power-supply-input-ac-100-240v-dc-110-300v-output-dc-24v-10a-240w-plug-connector-copie-1184-8793.jpg "CD5.243, standard DC/DC Converter, Input: DC 12V, Output: DC 24-28V, 4A, 96W [0]")
![CD5.243, standard DC/DC Converter, Input: DC 12V, Output: DC 24-28V, 4A, 96W [1]](https://gomagcdn.ro/domains/electrofive.ro/files/product/medium/cp10-242-r2-standard-redundancy-power-supply-input-ac-100-240v-dc-110-300v-output-dc-24v-10a-240w-plug-connector-copie-1184-9143.jpg "CD5.243, standard DC/DC Converter, Input: DC 12V, Output: DC 24-28V, 4A, 96W [1]")
![CD5.243, standard DC/DC Converter, Input: DC 12V, Output: DC 24-28V, 4A, 96W [2]](https://gomagcdn.ro/domains/electrofive.ro/files/product/medium/cp10-242-r2-standard-redundancy-power-supply-input-ac-100-240v-dc-110-300v-output-dc-24v-10a-240w-plug-connector-copie-1184-3568.jpg "CD5.243, standard DC/DC Converter, Input: DC 12V, Output: DC 24-28V, 4A, 96W [2]")
General specifications
- 12V DC-input
- Isolated 24Vdc output
- Efficiency up to 87.7%
- Width only 32mm
- 20% Output power reserves
- Full power between -25°C and +60°C
- Soft-start function
- Minimal inrush current surge
- Reverse input polarity protection
DC Output
- 24-28Vdc
- 4-3.4A
- 96W
Input
- DC 12V (± 20%)
- Size(WxHxD) 34 x 124 x 102mm
- Weight 435g
Durata de livrare: 2 saptamani
- Descriere
- Video (1)
- Review-uri (0)
The CD10.241 is a DIN-rail mountable DC/DC converter of the DIMENSION series which provides a floating, stabilized and galvanically separated SELV/PELV output voltage. The CD-Series is part of the DIMENSION power supply family.
The most outstanding features of CD10.241 are the high efficiency, the small size and the wide operational temperature range.
The CD-Series includes all the essential basic functions.
The devices have a power reserve of 20% included, which may even be used continuously at temperatures up to +45°C.
High immunity to transients and power surges as well as low electromagnetic emission and a large international approval package for a variety of applications makes this unit suitable for nearly every situation.
