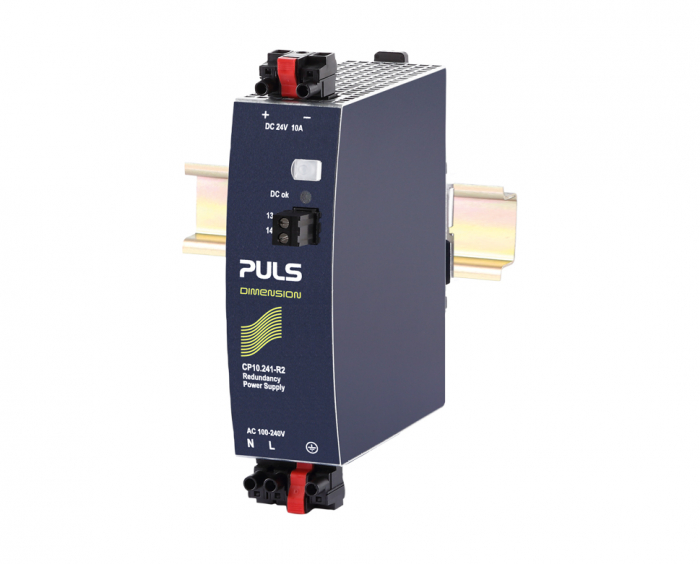

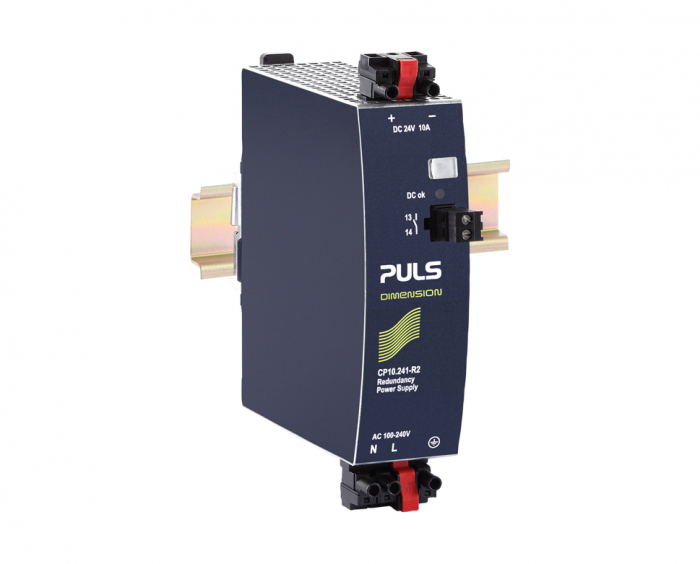

Puls CP10.241-R2, standard Redundancy Power Supply, Input: AC 100-240V, DC 110-150V, Output: DC 24V, 10A, 240W, plug connector

+ TVA 867,00 RON + TVA

General specifications

  • AC 100-240V Wide-range input
  • Width only 39mm
  • Built-in decoupling mosfet for 1+1 and n+1 redundancy
  • Efficiency up to 94.7%
  • 20% Output power reserves
  • Safe HiccupPLUS overload mode
  • Easy fuse breaking – 3 times nominal current for 12ms
  • Active power factor correction (PFC)
  • Minimal inrush current surge
  • Full power between -25°C and +60°C
  • DC-OK relay contact
  • Current sharing feature included

DC Output

  • 24Vdc
  • 10A
  • 240W

Input

  • AC 100-240V (-15%/+10%)
  • DC 110V-150V (± 20%)
  • Size(WxHxD) 39 x 124 x 117mm
  • Weight 600g
Fisa tehnica
La comanda

Durata de livrare: 2 saptamani

Limita stoc
Adauga in cos
Cod Produs: CP10.241-R2 Ai nevoie de ajutor? 0754 070 075
Adauga la Favorite Cere informatii
  • Descriere
  • Video (1)
  • Review-uri (0)

The CD10.241 is a DIN-rail mountable DC/DC converter of the DIMENSION series which provides a floating, stabilized and galvanically separated SELV/PELV output voltage. The CD-Series is part of the DIMENSION power supply family.

The most outstanding features of CD10.241 are the high efficiency, the small size and the wide operational temperature range.

The CD-Series includes all the essential basic functions.

The devices have a power reserve of 20% included, which may even be used continuously at temperatures up to +45°C.

High immunity to transients and power surges as well as low electromagnetic emission and a large international approval package for a variety of applications makes this unit suitable for nearly every situation.
