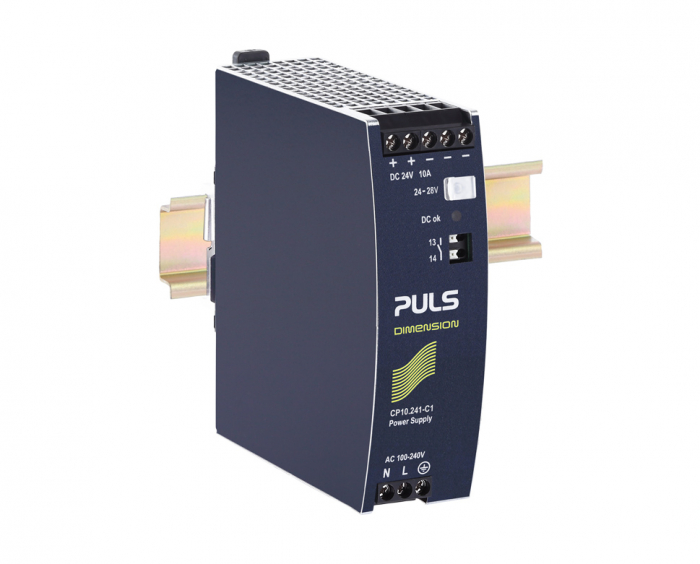

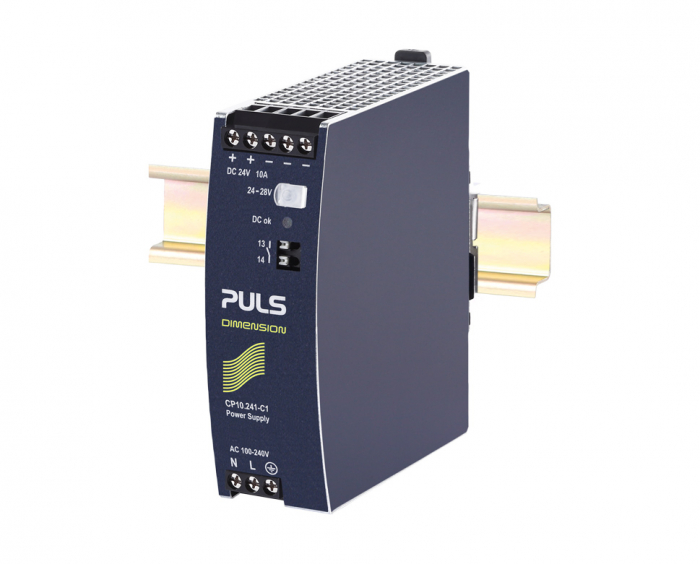

CP10.241-C1, DIN-rail power supplies for 1-phase systems, 24V, 10A
![CP10.241-C1, DIN-rail power supplies for 1-phase systems, 24V, 10A [1]](https://gomagcdn.ro/domains/electrofive.ro/files/product/original/cp10-241-60-dc-dc-converter-for-rolling-stock-railroad-applications-input-dc-96-110v-output-dc-24-28v-8-3a-200w-copie-1175-9560.jpg "CP10.241-C1, DIN-rail power supplies for 1-phase systems, 24V, 10A [1]")
![CP10.241-C1, DIN-rail power supplies for 1-phase systems, 24V, 10A [2]](https://gomagcdn.ro/domains/electrofive.ro/files/product/original/cp10-241-60-dc-dc-converter-for-rolling-stock-railroad-applications-input-dc-96-110v-output-dc-24-28v-8-3a-200w-copie-1175-2118.jpg "CP10.241-C1, DIN-rail power supplies for 1-phase systems, 24V, 10A [2]")
![CP10.241-C1, DIN-rail power supplies for 1-phase systems, 24V, 10A [3]](https://gomagcdn.ro/domains/electrofive.ro/files/product/original/cp10-241-60-dc-dc-converter-for-rolling-stock-railroad-applications-input-dc-96-110v-output-dc-24-28v-8-3a-200w-copie-1175-9040.jpg "CP10.241-C1, DIN-rail power supplies for 1-phase systems, 24V, 10A [3]")
![CP10.241-C1, DIN-rail power supplies for 1-phase systems, 24V, 10A [0]](https://gomagcdn.ro/domains/electrofive.ro/files/product/medium/cp10-241-60-dc-dc-converter-for-rolling-stock-railroad-applications-input-dc-96-110v-output-dc-24-28v-8-3a-200w-copie-1175-9560.jpg "CP10.241-C1, DIN-rail power supplies for 1-phase systems, 24V, 10A [0]")
![CP10.241-C1, DIN-rail power supplies for 1-phase systems, 24V, 10A [1]](https://gomagcdn.ro/domains/electrofive.ro/files/product/medium/cp10-241-60-dc-dc-converter-for-rolling-stock-railroad-applications-input-dc-96-110v-output-dc-24-28v-8-3a-200w-copie-1175-2118.jpg "CP10.241-C1, DIN-rail power supplies for 1-phase systems, 24V, 10A [1]")
![CP10.241-C1, DIN-rail power supplies for 1-phase systems, 24V, 10A [2]](https://gomagcdn.ro/domains/electrofive.ro/files/product/medium/cp10-241-60-dc-dc-converter-for-rolling-stock-railroad-applications-input-dc-96-110v-output-dc-24-28v-8-3a-200w-copie-1175-9040.jpg "CP10.241-C1, DIN-rail power supplies for 1-phase systems, 24V, 10A [2]")
General specifications
- AC 100-240V Wide-range input
- Width only 39mm
- Efficiency up to 95.2%
- Excellent partial load efficiency
- 20% Output power reserves
- Safe HiccupPLUS overload mode
- Easy fuse breaking due to high overload peak current
- Active power factor correction (PFC)
- Minimal inrush current surge
- Full power between -25°C and +60°C
- DC-OK relay contact
- conformal coated
DC Output
- 24-28Vdc
- 10-8.6A
- 240W
Input
- AC 100-240V (-15%/+10%)
- DC 110V-150V (± 20%)
- Size(WxHxD) 39 x 124 x 117mm
- Weight 600g
Durata de livrare: 2 saptamani
- Descriere
- Video (1)
- Review-uri (0)
The CD10.241 is a DIN-rail mountable DC/DC converter of the DIMENSION series which provides a floating, stabilized and galvanically separated SELV/PELV output voltage. The CD-Series is part of the DIMENSION power supply family.
The most outstanding features of CD10.241 are the high efficiency, the small size and the wide operational temperature range.
The CD-Series includes all the essential basic functions.
The devices have a power reserve of 20% included, which may even be used continuously at temperatures up to +45°C.
High immunity to transients and power surges as well as low electromagnetic emission and a large international approval package for a variety of applications makes this unit suitable for nearly every situation.
