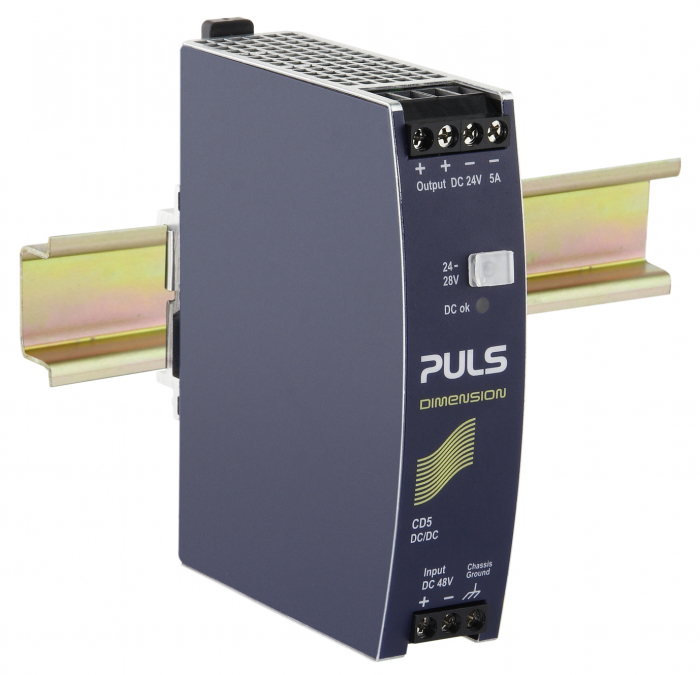

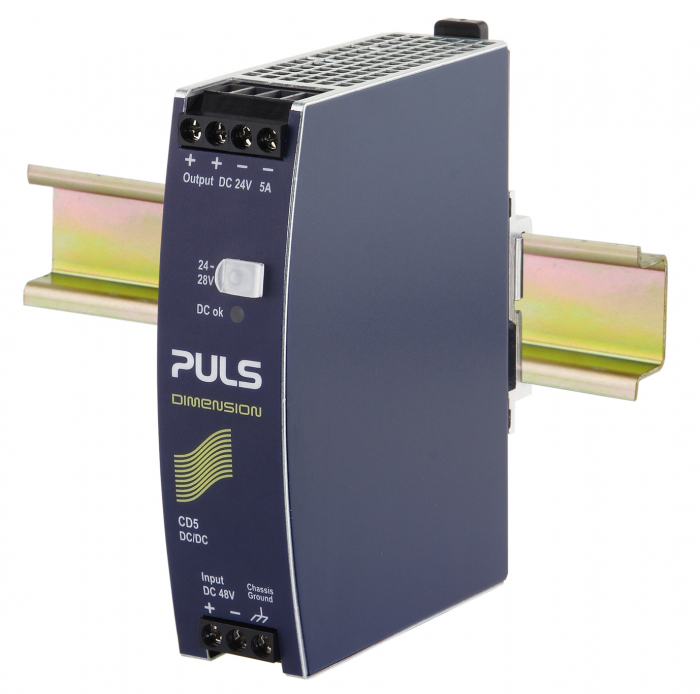

CD5.242, standard DC/DC Converter, Input: DC 48V, Output: DC 24-28V, 5A, 120W
![CD5.242, standard DC/DC Converter, Input: DC 48V, Output: DC 24-28V, 5A, 120W [1]](https://gomagcdn.ro/domains/electrofive.ro/files/product/original/cd5-241-s1-same-as-cd5-241-but-with-quick-connect-spring-clamp-terminals-dc-ok-contact-input-low-contact-and-input-low-led-copie-1170-8085.jpg "CD5.242, standard DC/DC Converter, Input: DC 48V, Output: DC 24-28V, 5A, 120W [1]")
![CD5.242, standard DC/DC Converter, Input: DC 48V, Output: DC 24-28V, 5A, 120W [2]](https://gomagcdn.ro/domains/electrofive.ro/files/product/original/cd5-241-s1-same-as-cd5-241-but-with-quick-connect-spring-clamp-terminals-dc-ok-contact-input-low-contact-and-input-low-led-copie-1170-3942.jpg "CD5.242, standard DC/DC Converter, Input: DC 48V, Output: DC 24-28V, 5A, 120W [2]")
![CD5.242, standard DC/DC Converter, Input: DC 48V, Output: DC 24-28V, 5A, 120W [3]](https://gomagcdn.ro/domains/electrofive.ro/files/product/original/cd5-241-s1-same-as-cd5-241-but-with-quick-connect-spring-clamp-terminals-dc-ok-contact-input-low-contact-and-input-low-led-copie-1170-6491.jpg "CD5.242, standard DC/DC Converter, Input: DC 48V, Output: DC 24-28V, 5A, 120W [3]")
![CD5.242, standard DC/DC Converter, Input: DC 48V, Output: DC 24-28V, 5A, 120W [0]](https://gomagcdn.ro/domains/electrofive.ro/files/product/medium/cd5-241-s1-same-as-cd5-241-but-with-quick-connect-spring-clamp-terminals-dc-ok-contact-input-low-contact-and-input-low-led-copie-1170-8085.jpg "CD5.242, standard DC/DC Converter, Input: DC 48V, Output: DC 24-28V, 5A, 120W [0]")
![CD5.242, standard DC/DC Converter, Input: DC 48V, Output: DC 24-28V, 5A, 120W [1]](https://gomagcdn.ro/domains/electrofive.ro/files/product/medium/cd5-241-s1-same-as-cd5-241-but-with-quick-connect-spring-clamp-terminals-dc-ok-contact-input-low-contact-and-input-low-led-copie-1170-3942.jpg "CD5.242, standard DC/DC Converter, Input: DC 48V, Output: DC 24-28V, 5A, 120W [1]")
![CD5.242, standard DC/DC Converter, Input: DC 48V, Output: DC 24-28V, 5A, 120W [2]](https://gomagcdn.ro/domains/electrofive.ro/files/product/medium/cd5-241-s1-same-as-cd5-241-but-with-quick-connect-spring-clamp-terminals-dc-ok-contact-input-low-contact-and-input-low-led-copie-1170-6491.jpg "CD5.242, standard DC/DC Converter, Input: DC 48V, Output: DC 24-28V, 5A, 120W [2]")
General specifications
- 48V DC-input
- Isolated 24Vdc output
- Efficiency 90.3%
- Width only 32mm
- 20% output power reserves
- Full power between -25°C and +60°C
- Soft-start function
- Minimal inrush current surge
- Reverse input polarity protection
DC Output
- 24-28Vdc
- 5-4.3A
- 120W
Input
- DC 24V
- Size(WxHxD) 32 x 124 x 102mm
- Weight 425g
Durata de livrare: 2 saptamani
- Descriere
- Video (1)
- Review-uri (0)
The CD10.241 is a DIN-rail mountable DC/DC converter of the DIMENSION series which provides a floating, stabilized and galvanically separated SELV/PELV output voltage. The CD-Series is part of the DIMENSION power supply family.
The most outstanding features of CD10.241 are the high efficiency, the small size and the wide operational temperature range.
The CD-Series includes all the essential basic functions.
The devices have a power reserve of 20% included, which may even be used continuously at temperatures up to +45°C.
High immunity to transients and power surges as well as low electromagnetic emission and a large international approval package for a variety of applications makes this unit suitable for nearly every situation.
