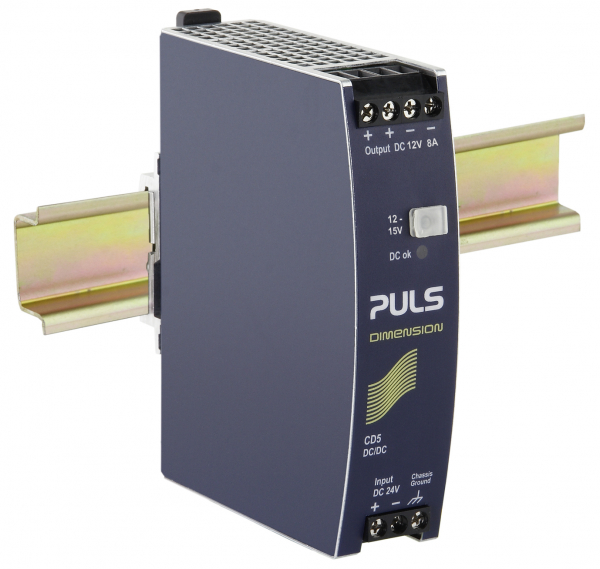

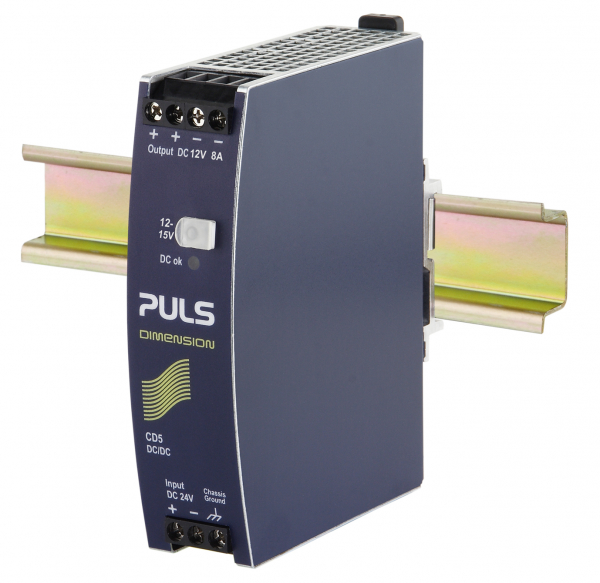

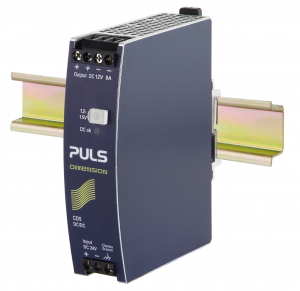

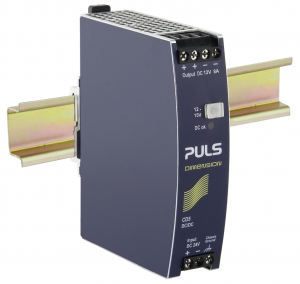

Puls CD5.121, standard DC/DC Converter, Input: DC 24V, Output: DC 12-15V, 8A, 96W

+ TVA 989,89 RON + TVA

General specifications

  • 24V DC-input
  • Isolated 48Vdc output
  • Efficiency 88.2%
  • Width only 32mm
  • 20% output power reserves
  • Full power between -25°C and +60°C
  • Soft-start function
  • Minimal inrush current surge
  • Reverse input polarity protection

DC Output

  • 12-15Vdc
  • 8-6.4A
  • 96W

Input

  • DC 24V
  • Size(WxHxD) 32 x 124 x 102mm
  • Weight 425g
Fisa tehnica
In stoc
Limita stoc
Adauga in cos
Cod Produs: CD5.121 Ai nevoie de ajutor? 0754 070 075
Adauga la Favorite Cere informatii
  • Descriere
  • Video (1)
  • Review-uri (0)

The CD10.241 is a DIN-rail mountable DC/DC converter of the DIMENSION series which provides a floating, stabilized and galvanically separated SELV/PELV output voltage. The CD-Series is part of the DIMENSION power supply family.

The most outstanding features of CD10.241 are the high efficiency, the small size and the wide operational temperature range.

The CD-Series includes all the essential basic functions.

The devices have a power reserve of 20% included, which may even be used continuously at temperatures up to +45°C.

High immunity to transients and power surges as well as low electromagnetic emission and a large international approval package for a variety of applications makes this unit suitable for nearly every situation.

Fisa tehnica
