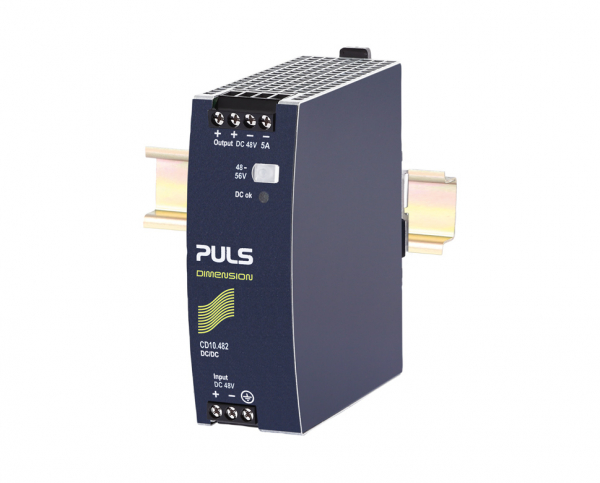

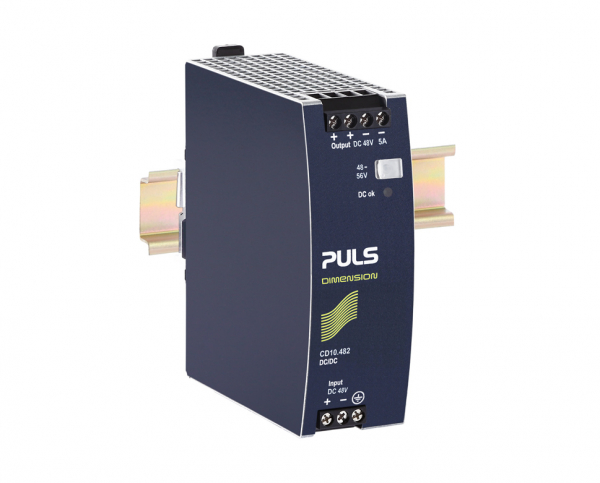

Puls CD10.482, standard DC/DC Converter, Input: DC 48V, Output: DC 48-56V, 5A, 240W

+ TVA 1.287,89 RON + TVA

General specifications

  • 48V DC-input
  • Isolated 48Vdc output
  • Efficiency 95.1%
  • Width only 42mm
  • 20% output power reserves
  • Full power between -25°C and +60°C
  • Soft-start function
  • Minimal inrush current surge
  • Reverse input polarity protection

DC Output

  • 48-56Vdc
  • 5-4.3A
  • 240W

Input

  • DC 48V (-25%/+46%)
  • Size(WxHxD) 42 x 124 x 117mm
  • Weight 500g
Fisa tehnica
La comanda

Durata de livrare: 2 saptamani

Limita stoc
Adauga in cos
Cod Produs: CD10.482 Ai nevoie de ajutor? 0754 070 075
Adauga la Favorite Cere informatii
  • Descriere
  • Video (1)
  • Review-uri (0)

The CD10.241 is a DIN-rail mountable DC/DC converter of the DIMENSION series which provides a floating, stabilized and galvanically separated SELV/PELV output voltage. The CD-Series is part of the DIMENSION power supply family.

The most outstanding features of CD10.241 are the high efficiency, the small size and the wide operational temperature range.

The CD-Series includes all the essential basic functions.

The devices have a power reserve of 20% included, which may even be used continuously at temperatures up to +45°C.

High immunity to transients and power surges as well as low electromagnetic emission and a large international approval package for a variety of applications makes this unit suitable for nearly every situation.
