XUYFNEP40002, senzor foto electric, fork, pot +/-, 2X42mm, 12...24 VDC, M8
![XUYFNEP40002, senzor foto electric, fork, pot +/-, 2X42mm, 12...24 VDC, M8 [1]](https://gomagcdn.ro/domains/electrofive.ro/files/product/original/pf120611_288x288-png-1271-1837.png "XUYFNEP40002, senzor foto electric, fork, pot +/-, 2X42mm, 12...24 VDC, M8 [1]")
General specifications
- Range of product Telemecanique Photoelectric sensors XU
- Electronic sensor type Photo-electric sensor
- Sensor name XUY
- Sensor design Fork
- Detection system Thru beam
- Emission Infrared LED, modulated
- Passage width 0.08 in (2 mm)
- Passage depth 1.65 in (42 mm)
- Material Metal/plastic
- Supply circuit type DC
- Wiring technique 4-wire
- Discrete output type PNP and NPN
- Discrete output function 1 NO or 1 NC programmable
- Electrical connection 1 male connector M8, 4 pins
- Detection on vibrating rail
- Detection of double sheet
- Detection of reference marks
- Detection of labels
- Detection on small conveyor
- [Sn] nominal sensing distance 0.08 in (2 mm)
Cod Produs:
XUYFNEP40002
Ai nevoie de ajutor?
0754 070 075
- Descriere
- Video (1)
- Review-uri (0)
General specifications
- Range of product Telemecanique Photoelectric sensors XU
- Electronic sensor type Photo-electric sensor
- Sensor name XUY
- Sensor design Fork
- Detection system Thru beam
- Emission Infrared LED, modulated
- Passage width 0.08 in (2 mm)
- Passage depth 1.65 in (42 mm)
- Material Metal/plastic
- Supply circuit type DC
- Wiring technique 4-wire
- Discrete output type PNP and NPN
- Discrete output function 1 NO or 1 NC programmable
- Electrical connection 1 male connector M8, 4 pins
- Detection on vibrating rail
- Detection of double sheet
- Detection of reference marks
- Detection of labels
- Detection on small conveyor
- [Sn] nominal sensing distance 0.08 in (2 mm)
Daca doresti sa iti exprimi parerea despre acest produs poti adauga un review.
Scrie un review
Produse similare

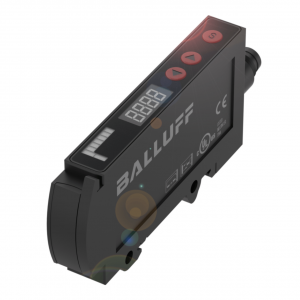

BFB0006, senzor fotoelectric seria 75K, PNP (NO/NC), teach Sn, key disable on/off, 24 VDC, conector M8, 4 pini

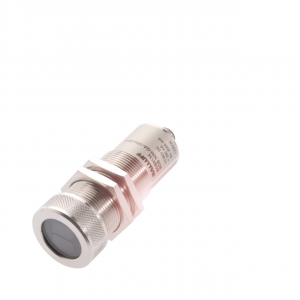

BOS0134,seria 30M, senzor fotoelectric-difuz,, PNP (NO/NC) NPN (NO/NC), 24 VDC, conector M12, 4 pini

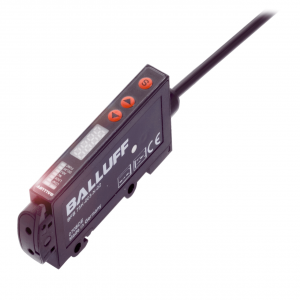

BFB0008, senzor fotoelectric seria 75K, teach Sn, key disable on/off, PNP (NO/NC), 24 VDC, cablu 2 m, 4 fire
BFB0009, senzor fotoelectric seria 18M, 2x PNP (NO/NC), 24 VDC, conector cu 4 pini

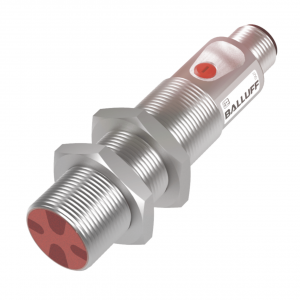

BFB000A, senzor fotoelectric seria 18M, 2x PNP (NO/NC), 24 VDC, conector cu 4 pini

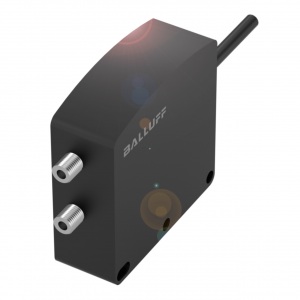

BFS000L, senzor fotoelectric de culoare, 3x PNP/NPN (NO/NC), 24 VDC, cablu 2 m, 5 fire

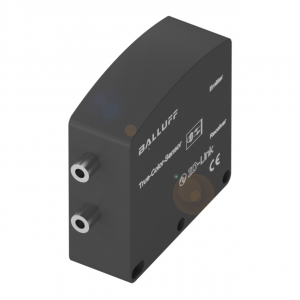

BFS000M, senzor fotoelectric de culoare, 2x NO/NC, 24 VDC, cablu 2 m, 5 fire
BGL0002, senzor fotoelectric, tip furca, deschidere 10 mm, NPN (NO/NC), 24 VDC, conector M8, 3 pini

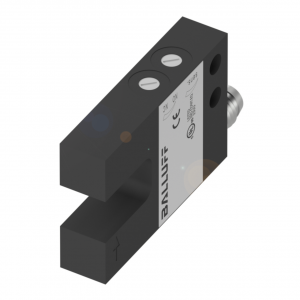

BGL0006, senzor fotoelectric, tip furca, deschidere 10 mm, NPN (NO/NC), 24 VDC, conector M8, 3 pini
BGL0008, senzor fotoelectric, tip furca, deschidere 120 mm, NPN (NO/NC), 24 VDC, conector M8, 3 pini

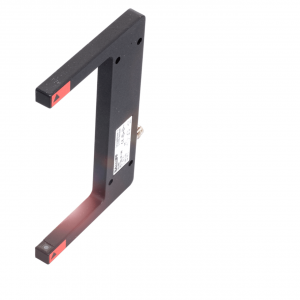

BGL000A, senzor fotoelectric, tip furca, deschidere 120 mm, NPN (NO/NC), 24 VDC, conector M8, 3 pini

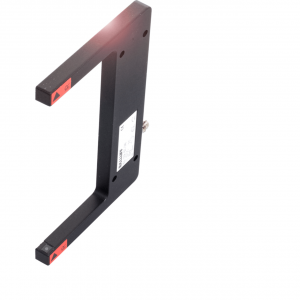

BGL000H, senzor fotoelectric, tip furca, deschidere 120 mm, NPN (NO/NC), 24 VDC, conector M8, 3 pini

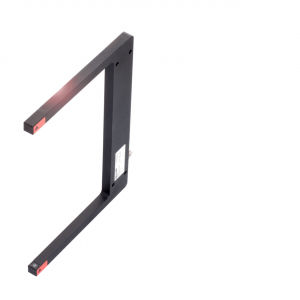

BGL000J, senzor fotoelectric, tip furca, deschidere 180 mm, PNP (NO/NC), 24 VDC, conector M8, 3 pini
