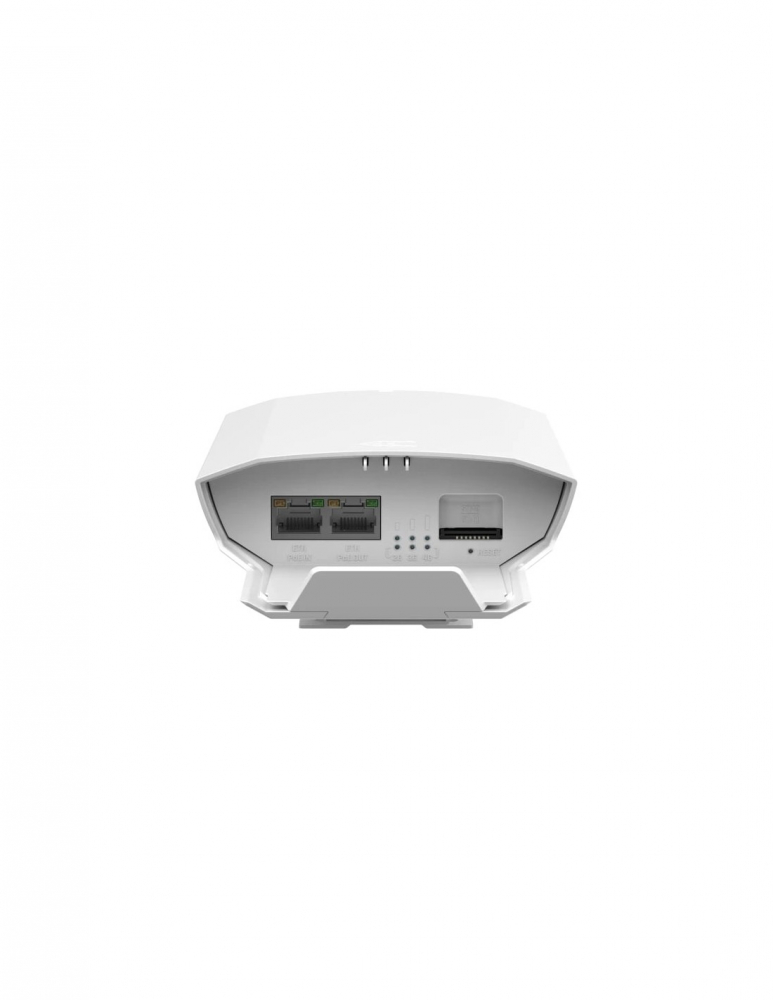

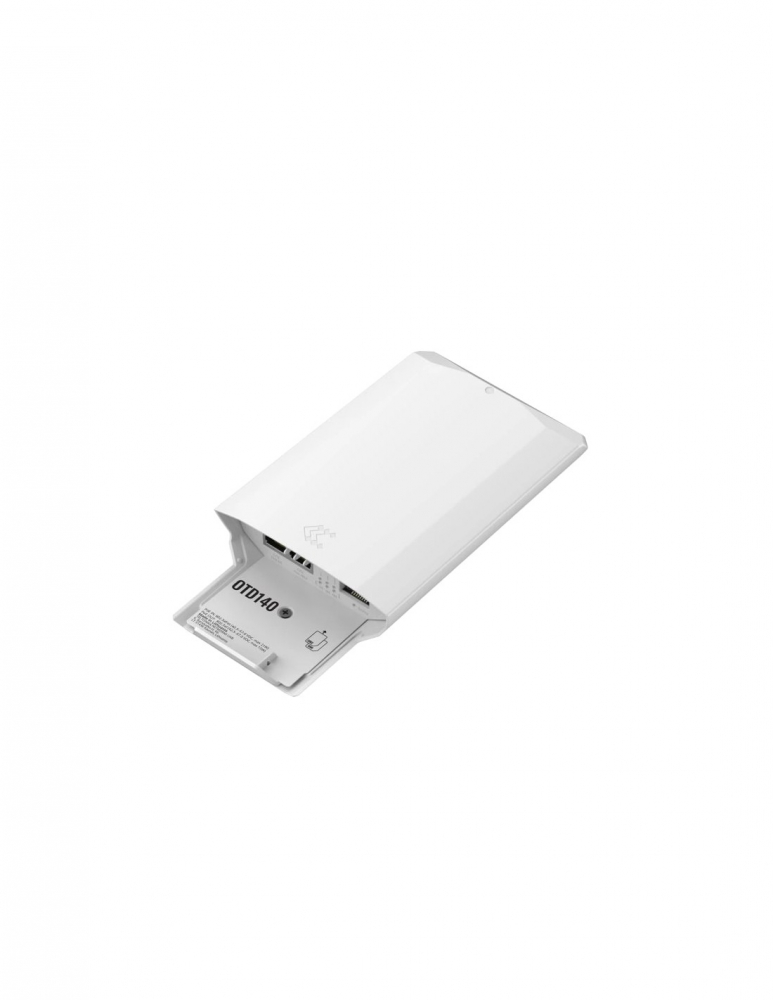

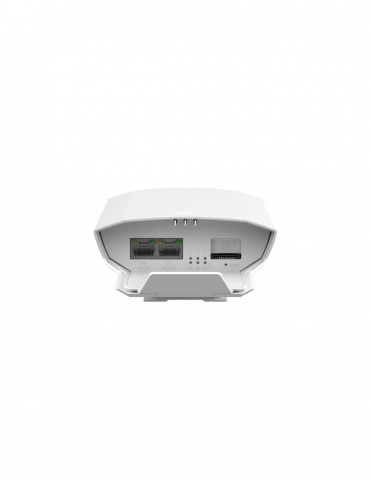

OTD140, Router 4G Exterior

HARDWARE

• Mobile: 4G (LTE) - LTE Cat 4 150 Mbps DL, 50 Mbps UL; 3G - 21 Mbps DL, 5.76 Mbps UL; 2G - 236.8 kbps DL, 236.8 kbps UL
• CPU: Mediatek, 580 MHz, MIPS 24 KEc
• RAM: 128 MB
• Storage: 16 MB
• Powering options (PoE In): RJ45, PoE In: 802.3af/at (42.5 – 57 VDC, max 21W)
• PoE Out PoE Out: 802.3af/at (42.5 – 57 VDC, max 24W) Alternative B
• SIM: 2 x SIM slots (Mini SIM - 2FF), 1.8 V/3 V
• Antenna: 2 x Internal antennas
• Antennas specifications: 1 x 698 - 960 / 1710 - 2690MHz, 50 Ω, VSWR <3.5, gain <3 dBi, omnidirectional 1 x 698 - 960 / 1710 - 2690MHz, 50 Ω, VSWR <3, gain <4.5 dBi, omnidirectional
• Ethernet: 2 x RJ45 ports, 10/100 Mbps: 2 x ETH ports (can be configured as WAN)
• Status LEDs: 3 x Mobile connection type, 3 x Mobile connection strength, 4 x ETH status LEDs
• Operating temperature: -40 °C to 75 °C
• Housing: Plastic (PC+ASA)
• Dimensions (W x H x D): 110 x 49.30 x 235 mm
• Weight: 855 g
• Ingress Protection Rating: IP55

SOFTWARE

• Operating system: RutOS (OpenWrt based Linux OS)
• Mobile features: Auto APN, SIM switch, Call, SMS, USSD, Black/White list, Band management, Status, Bridge, Passthrough
• Network features: Routing, Network protocols, VoIP passthrough support, Connection monitoring, Firewall, DHCP, QoS / Smart Queue Management (SQM), DDNS, Network backup, Load balancing, SSHFS
• Monitoring and Management: WEB UI, FOTA, SSH, SMS, Call, TR-069, MQTT, SNMP, JSON-RPC, MODBUS, RMS
• VPN and tunneling: OpenVPN, OpenVPN Encryption, IPsec, GRE, PPTP, L2TP, Stunnel, DMVPN, SSTP, ZeroTier, WireGuard, Tinc
• Cloud solutions: RMS, Cloud of Things, ThingWorx, Cumulocity, Azure IoT Hub
