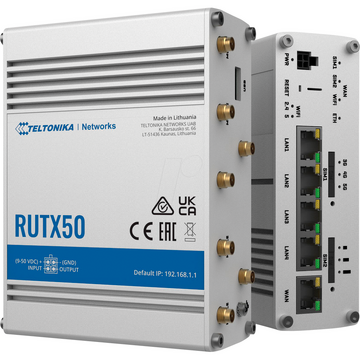

RUTX50, router industrial compact, 5 porturi Gigabit, Wi Fi, Dual-SIM, GPS

HARDWARE

• Mobile: 5G Sub-6Ghz SA/NSA 2.1/3.3Gbps DL (4x4 MIMO), 900/600 Mbps UL (2x2); 4G (LTE) – LTE Cat 20 2.0Gbps DL, 200Mbps UL; 3G – 42 Mbps DL, 5.76Mbps UL
• CPU: Quad-core ARM Cortex A7, 717 MHz
• Flash storage: 256 MB
• RAM: 256 MB
• Powering options: 4-pin power socket, 9-50 VDC
• SIM: 2 x SIM slot (Mini SIM – 2FF), 1.8 V/3 V
• Antenna connectors: 4 x SMA for Mobile, 2 x RP-SMA for WiFi, 1 x SMA for GNSS
• Ethernet: 5 x 10/100/1000 Ethernet ports: 1 x WAN (configurable as LAN), 4 x LAN
• WiFi: 802.11b/g/n/ac Wave 2 (WiFi 5) with data transmission rates of up to 867 Mbps (Dual Band, MU-MIMO), 802.11r fast transition, Access Point (AP), Station (STA)
• Wireless mesh/roaming Wireless mesh (802.11s), fast roaming (802.11r) GNSS GPS, GLONASS, BeiDou, Galileo, QZSS
• Inputs/Outputs On 4-pin socket: 1 x Digital input, 1 x Digital open collector output
• Other 1 x USB host, 1 x Grounding screw
• Status LEDs: 3 x connection status LEDs, 3 x connection strength LEDs, 10 x Ethernet port status LEDs, 4 x WAN status LEDs, 1x Power LED, 2 x 2.4G and 5G WiFi LEDs
• Operating temperature: -40 °C to 75 °C
• Housing: Aluminum housing, DIN rail (can be mounted on two sides), flat surface placement
• Dimensions (W x H x D): 132 x 44.2 x 95.1 mm
• Weight: 533 g

SOFTWARE

• Operating system: RutOS (OpenWrt based Linux OS)
• Mobile features Multiple PDN, Auto APN, Band lock, SIM switch, Operator black/white list, Data/SMS limits
• Network features: Routing, Failover, Firewall, DHCP, DDNS, Load Balancing, VoIP passthrough, Connection monitoring
• Monitoring and Management: WEB UI, CLI, SSH, CALL, SMS, TR-069, SNMP, JSON-RPC, MQTT, MODBUS, RMS
• VPN and tunneling: OpenVPN, IPsec, GRE, PPTP, L2TP, Stunnel, DMVPN, SSTP, WireGuard, ZeroTier
• Cloud solutions: RMS, FOTA, Azure IoT Hub, Cloud of Things, Cumulocity, ThingWorx
• Hotspot: External/Internal Radius, SMS OTP, MAC authentication, Walled Garden
• GNSS: NMEA forwarding, AVL, Geofencing
