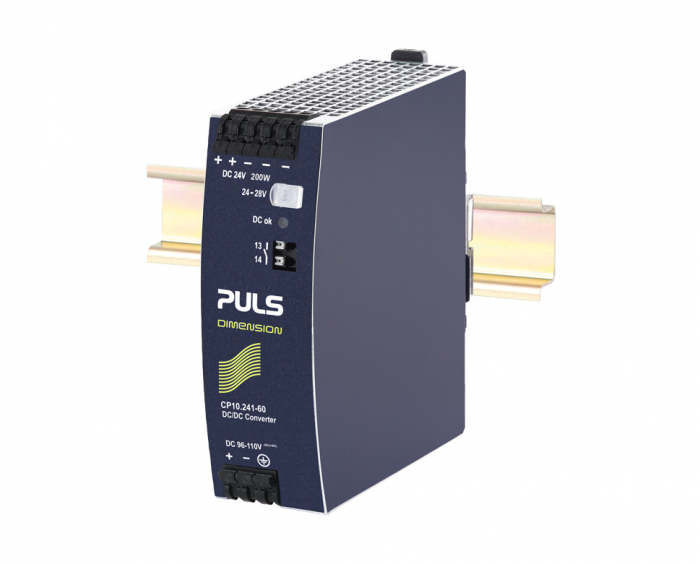

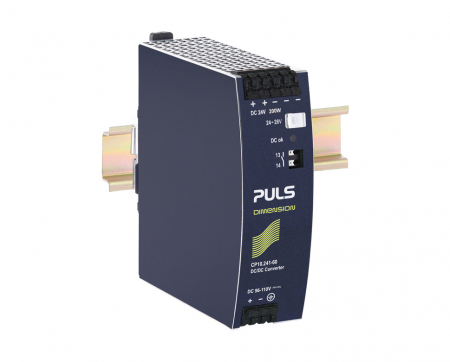

Puls CP10.241-60, DC/DC converter for rolling-stock railroad applications, Input: DC 96-110V, Output: DC 24-28V, 8.3A, 200W

+ TVA 1.278,00 RON + TVA

General specifications

  • EN 50155 Railway compliant
  • Conformal coated PC-boards
  • Quick-connect spring-clamp terminals
  • 67-154Vdc wide-range input
  • Width only 39mm
  • Efficiency up to 94.5%
  • Excellent partial load efficiency
  • Minimal inrush current surge
  • Full output power between -40°C and +70°C
  • DC-OK relay contact
  • Reverse input polarity protected

DC Output

  • 24-28Vdc
  • 8.3-7.1A
  • 200W

Input

  • DC 96V-110V (-30%/+40%)
  • Size(WxHxD) 39 x 124 x 117mm
  • Weight 620g
Fisa tehnica
La comanda

Durata de livrare: 2 saptamani

Limita stoc
Adauga in cos
Cod Produs: CP10.241-60 Ai nevoie de ajutor? 0754 070 075
Adauga la Favorite Cere informatii
  • Descriere
  • Video (1)
  • Review-uri (0)

The CD10.241 is a DIN-rail mountable DC/DC converter of the DIMENSION series which provides a floating, stabilized and galvanically separated SELV/PELV output voltage. The CD-Series is part of the DIMENSION power supply family.

The most outstanding features of CD10.241 are the high efficiency, the small size and the wide operational temperature range.

The CD-Series includes all the essential basic functions.

The devices have a power reserve of 20% included, which may even be used continuously at temperatures up to +45°C.

High immunity to transients and power surges as well as low electromagnetic emission and a large international approval package for a variety of applications makes this unit suitable for nearly every situation.
