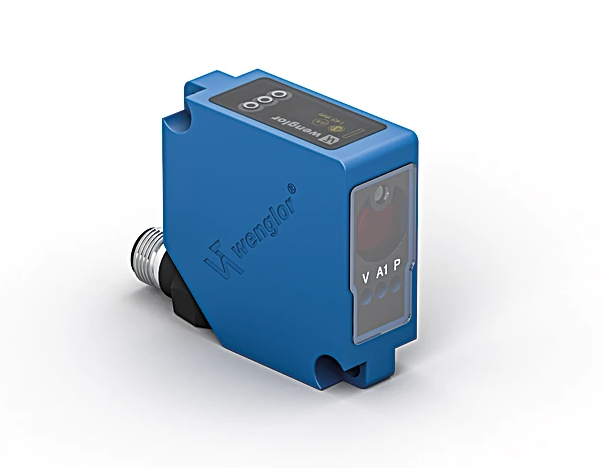

OY1P303P0189, Senzor de distanta cu laser
![OY1P303P0189, Senzor de distanta cu laser [1]](https://gomagcdn.ro/domains/electrofive.ro/files/product/original/oy1p303p0189-senzor-de-distanta-cu-laser-cu-timpului-de-tranzit-849599.png "OY1P303P0189, Senzor de distanta cu laser [1]")
These sensors have scratch-resistant optics and the emitted light can be switched off. They use the transit time measurement principle to measure the distance between the sensor and the object. wenglor interference-free technology (wintec) has revolutionized sensor technology: It makes it possible to mount several sensors directly next to, or opposite each other without the sensors influencing each other. The sensors reach a very high switching frequency and use laser class 1, which is safe for the human eye.
Durata de livrare: 3-5 zile
Cod Produs:
OY1P303P0189
Ai nevoie de ajutor?
0754 070 075
- Descriere
- Review-uri (0)
Specificatii tehnice:
- Supply Voltage 18 ... 30 V DC
- Current Consumption (Ub = 24 V) < 70 mA
- Switching Frequency 250 Hz
- Measuring Rate 1 ... 500 /s
- On-/Off-Delay 0 ... 10,000 ms
- Temperature Drift < 0.4 mm/K
- Temperature Range -40 ... 50 °C
- Number of Switching Outputs 2
- Switching Output Voltage Drop < 2.5 V
- Switching Output/Switching Current 100 mA
- Analog Output 4...20 mA
- Short Circuit Protection yes
- Reverse Polarity Protection yes
- Overload Protection yes
- Teach Mode HT, VT, FT, TP
- Interface RS-232
- Protection Class III
- Degree of Protection: IP68
- Connection: M12 × 1; 8-pin
- RS-232 Interface: yes
- Analog output: 0...10 V, 4...20 mA
- Other parameters: Off-delay, Scale analog output, On-delay,Filter, Hysteresis, Emitted light,Teach mode, Switching point
